10000W CLASS D MONOBLOCK

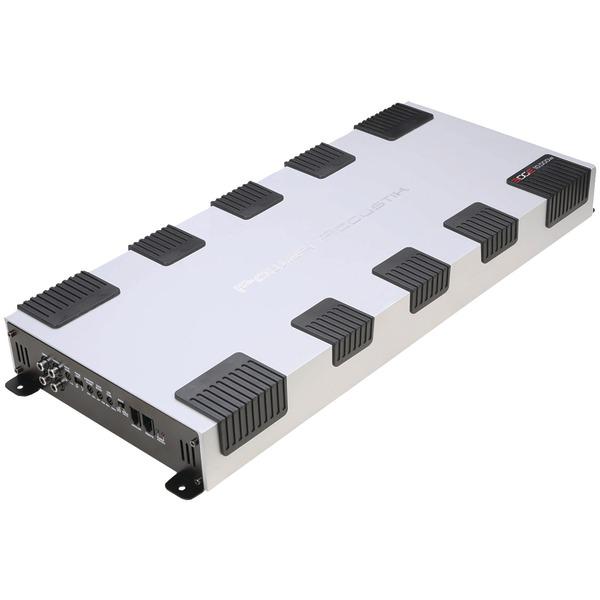

Power Acoustik EG1-10000D Edge Series Monoblock Class D Amp (10000 Watts max) Class D monoblock
1ohm stable monoblock operation for max power
2 amps are bridgeable for double power
Military-grade PCB with PWM MOSFET power supply
Direct short thermal & overload circuit protection
Highspeaker-level & low-levelRCA inputs
200mV-6V low-level RCA input
4-gauge power wire & 8-gauge speaker wire outputs
Variable 12dB high- & low-pass crossovers
12dB bass boost & 180deg phase shift increase & improve low-octave harmonics
Includes dash-mount gain control
10000W max
1600W RMS x 1 @ 2ohm
3300W RMS x 1 @ 1ohm
5000W RMS x 1 @ .5ohm bridged
Dim: 2.25H x 20.5W x 9D
POWER ACOUSTIK(R)PRODUCT WARRANTY : ONE YEAR
