CPU

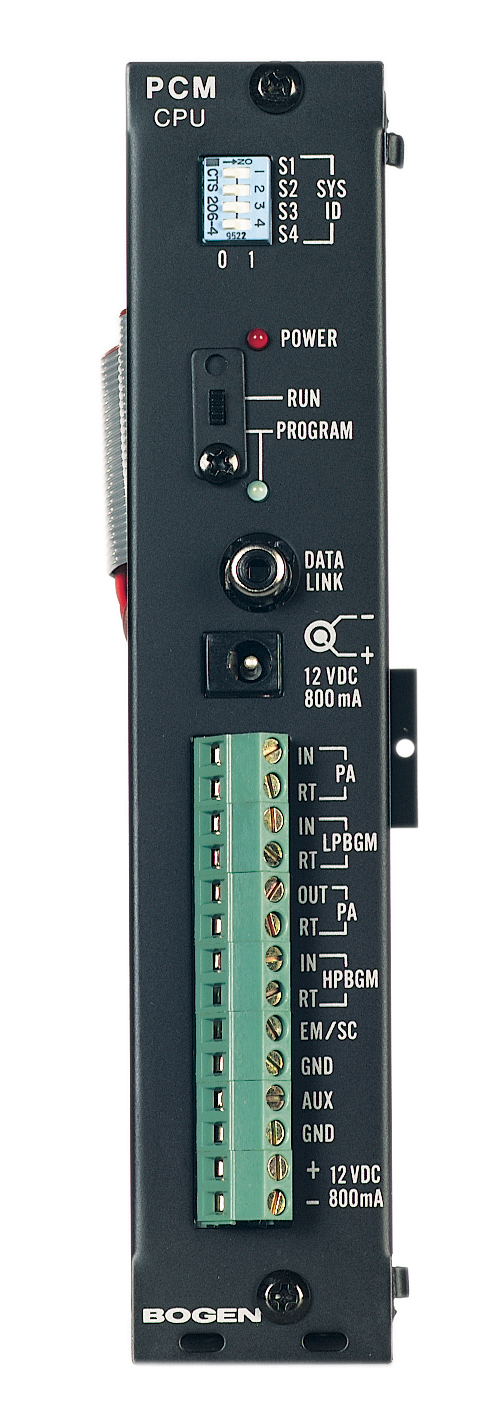

- Bogen microprocessor module for PCM zone paging system- One required per system - Provides power, data and audio connections for the PCM system- Connected to other PCM modules electrically through internal cables- Modules mechanically joined by sliding together interlocking tabs and securing with a screw on the rear panel- Designed to be wall-mounted with modules side by side like books (oriented so that when the blue connector blocks are on bottom, PCM-TIM is far left, PCM-CPU is first from left and the first PCM-ZPM module is on the right)- Includes a set of dip switches that set the SYStem ID, a power LED, a programrun switch, a data link RCA jack (used to connect to satellite systems), power in jackterminals, and audio connections for PA, low power BGM, high power BGM, emergencyshift change trigger and auxiliary contactsBGPCMCPU
