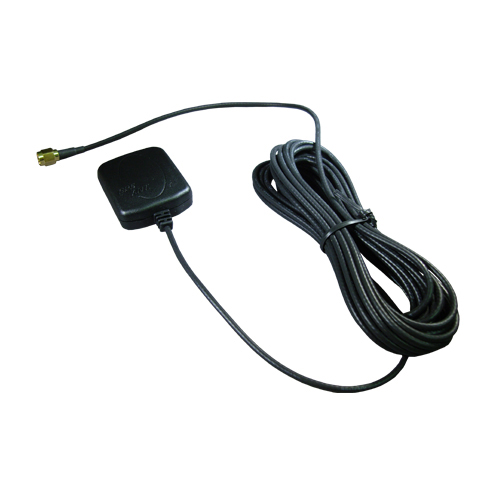

GPS External Active Antenna

- US Global Satellite GPS External active antenna- SMA type connector- Light and compact- Povides excellent reception to optimize GPS performance- Easy to connect- Varied connectors are available (sold separately)- ANTENNA Frequency: 1575.42+2 MHz, VSWR: 1.5 max., bandwidth: 10 MHz min., axial ratio: 3 dB typical, impedance: 50ohm, peak gain: 4 dBic min., gain coverage: > -4dBic at -90 90 (over 75% volume), power handling: 1 watt, polarization: RHCP- AMPLIFIER MODULE amplifier gain without cable: 27 dB typical, noise figure: 1.5 dBtypical, filtering: -25 dB (+ 100MHz), output VSWR: 2.0max., voltage: DC 3.0 5.0V, current: 22mA Max @ 5VDC- Weight: under 95 grams- Cable: RG174 5 meter length- Connector: MMCXSMA- Magnetic base mount- 100% Waterproof
