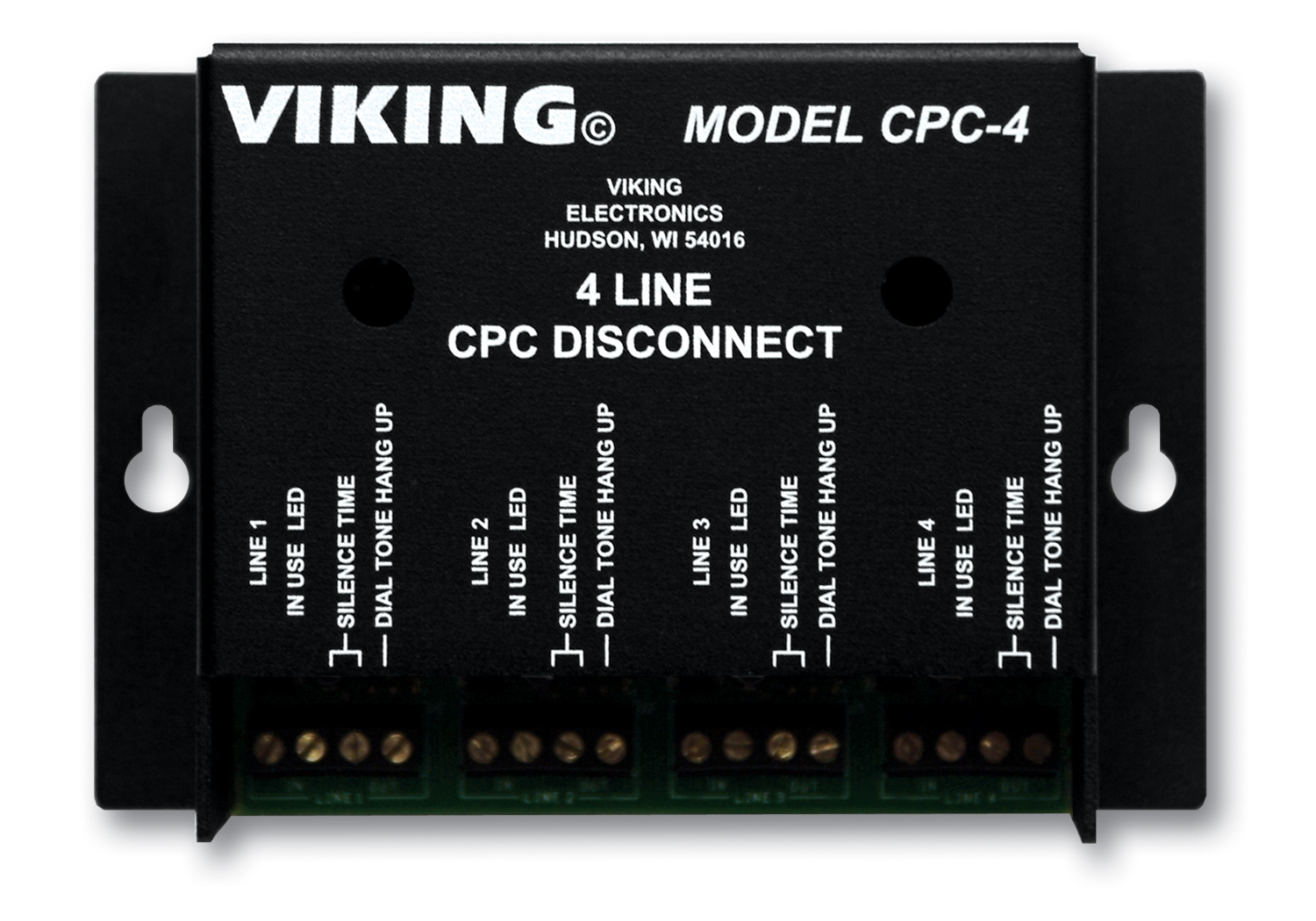

Generate CPC Disconnect Signals

- Viking calling party control - generate CPC disconnect signals on four separate phone lines - Phone line powered (no AC needed)- Handle 4 lines in 1 unit- Generates CPC disconnect on: Return to dial tone (programmable), Busy signal, Reorder (fast busy), Steady silence (programmable)- LED shows: In use, Audio detected, Generated CPC signal- Caller ID compatible - Power: Telephone line powered (20VDC, 20mA minimum)- Dimensions: 133mm x 89mm x 44mm (5.25IN x 3.5IN x 1.75IN)- Shipping Weight: 1.13Kg (2.5 lbs)- Environmental: 0° C to 32° C (32° F to 90° F) with 5% to 95% non-condensing humidity- CPC Disconnect Time: 1 second nominal- Connections: 4 position screw terminal block - VKCPC4
