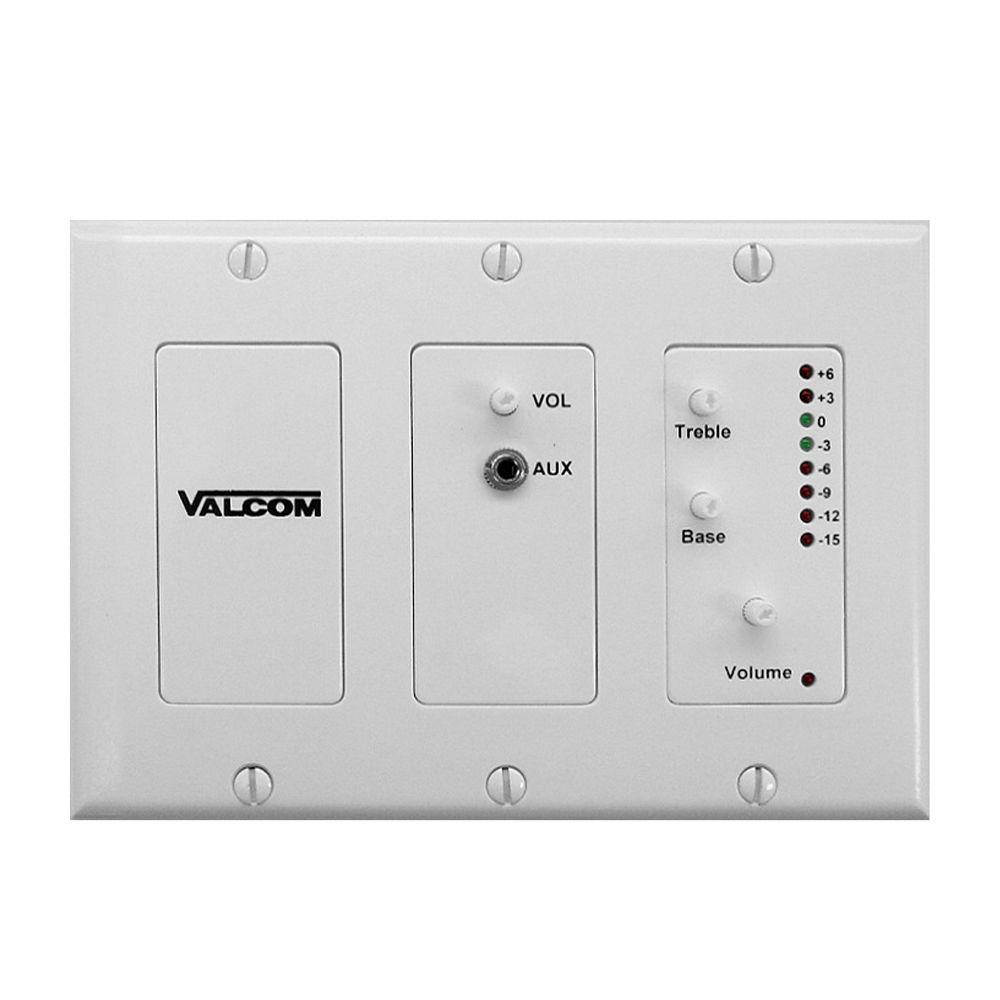

In-wall audio mixer

- Valcom 2 Channel White In-Wall Audio Mixer- Provides active mixing for 1 balanced microphone input and 2 auxiliary inputs- Additional audio input (building page) with an override feature- Mounts in 4 gang deep electrical box and is supplied with a 4 gang white decorator style face plate- Up to 3 additional remote modules (VC-V-9984) may be connected to the main control module- Each remote module adds 1 balanced microphone and 1 auxiliary input- Two pair structured cable is used to connect remote input modules to the main mixer- Contemporary styling to match todays offices, conference rooms and restaurant environments- Master volume control is provided for final level adjustments- 8 segment LED meter provides instant visual indication of audio signal levels- Building page input overrides all other sources (voice operated, switch enabled)- Full frequency range output for speakers and modified output for horn loads- Built in compressor (option switch controlled) evens out loud and quiet inputs- Operates on 24 Vdc requiring 1 valcom power unit
