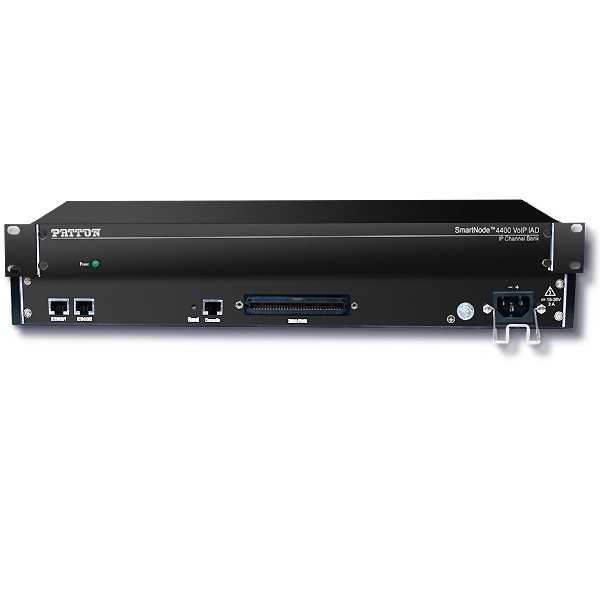

SmartNode IpChannelBank 12 FXS VoIP GW-R

- Two 10100 Ethernet ports- Complete IP access router- DHCP Client & server- Packet fragmentation- Static firewall, NAT, NAPT RFC 1631 access control lists- DMZ port- Voice priority, DownStreamQoS, Traffic management, shaping and policing- IEEE 802.1p, TOS, DiffServ labeling- IEEE 802.1Q, VLAN tag insertiondeletion (4096 VLAN IDs, multiple VLAN support- WebHTTP, CLI with local console and remote Telnet access- TFTP configuration & firmware loading • SNMP MIB II and product MIB- Secure auto-provisioning for both firmware and unitsubscriber configuration- Built-in diagnostic tools (trace, debug, call generator)- 2-wire Loopstart on 50pin (12 to 24 channels) or 64pin (32 channels) Telco connector- Short haul loop 1.1km @3REN • EuroPOTS (ETSI EG201188)- Programmable AC impedance, feeding, ring and on-hook voltage- Caller-ID FSK and ITU V.23Bell 202 generation- SIPv2 H.323v4 (simultaneously with B2BUA capability)- SIP call transfer, redirect- DTMF in-band & out-of-band- All tones programmable (dial, ringing, busy)- CODEC G.711 a-lawmu-law, G.723, G.729ab- G.726, G.727. T.38 fax relay- G.711 transparent fax and bypass- 9-in. rack-mount chassis
