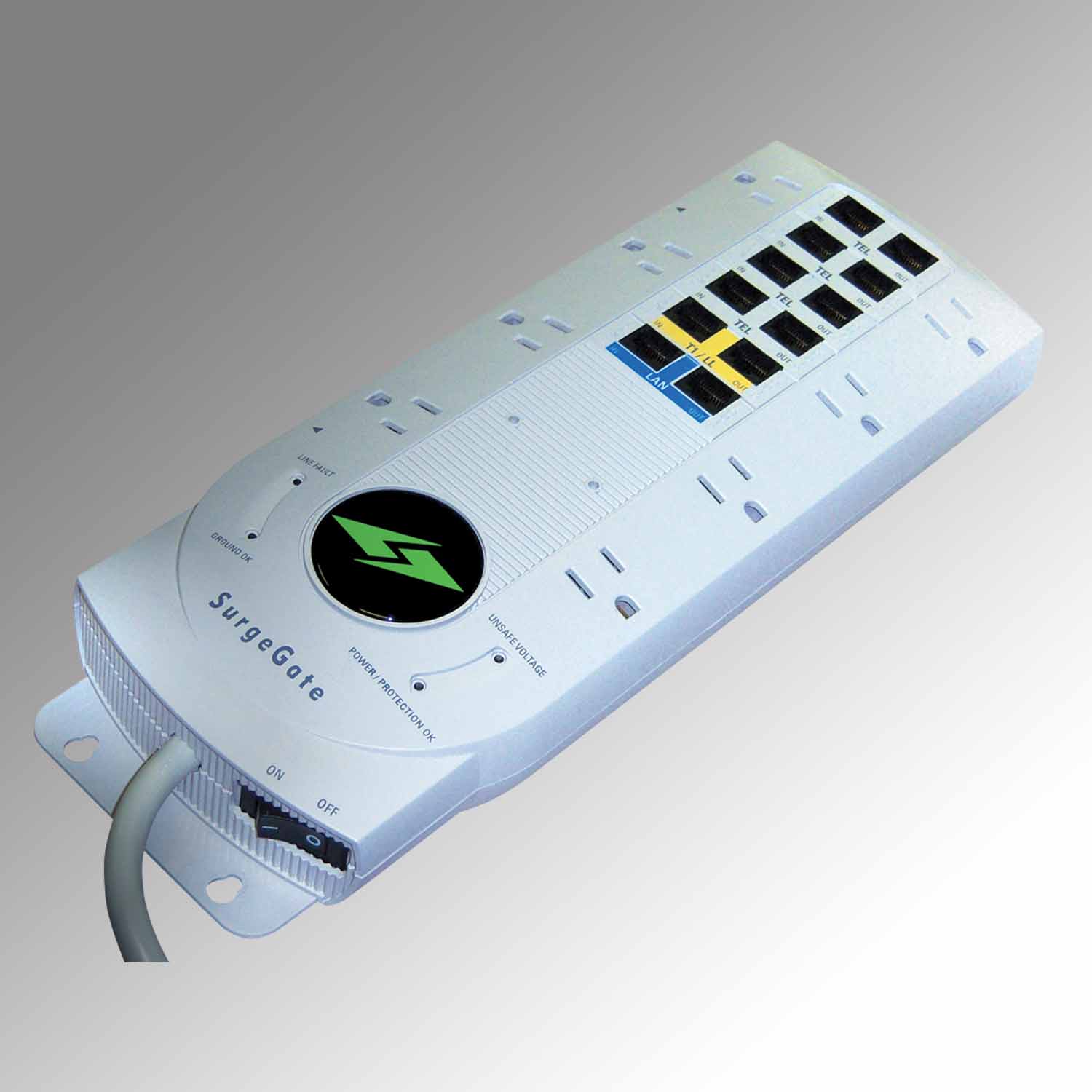

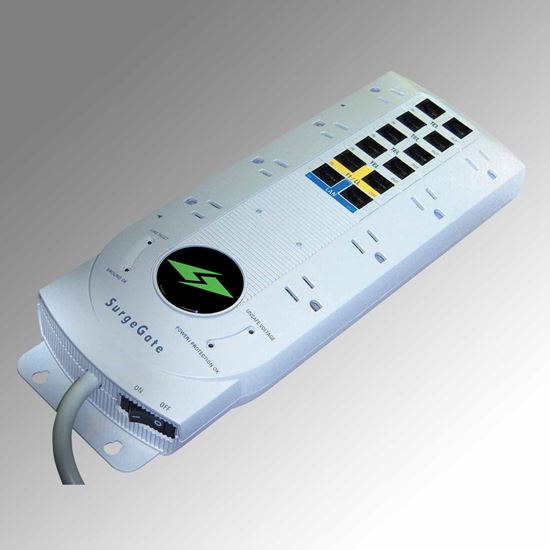

SurgeGate 8 Outlet AC

- Premier Series 8-Outlet AC Surgegate Surge Protector with T1LL and LAN Protection - 8-outlet AC surge protector, with SurgeGate Plus circuitry and modular mounting capabilities. Plus protection for 4 telephone or DSL lines, 1 T1LL and 1 LAN line. - Signal Line Surge Protection:- Signal Perfect Circuitry - Fuseless - Clamping: Telco - 260V, T1LL - 70V, LAN - 7V - Response Time: 1-5 Nanoseconds - Capacitance: <50pF - Suppression Modes: Metallic and Longitudinal - Wires Protected: Telco - 1 pair per jack (pins 4, 5), T1LL - Pins 1, 2, 4, 5, LAN - 8-wires (pins 1-8) - Termination Type: Telco - RJ11RJ45, T1LL and LAN - RJ45 AC Surge Protection- LED Indicators: 4- Power Cord: 8 foot, right angle - Number Outlets: 8- Number Switched Outlets: 8- Mounting brackets included-Thermal Fusing- Catastrophic Surge Circuit- OverUndervoltage Protection- Overvoltage Shutoff: 147V ±11V- Undervoltage Shutoff: 87V ±8V- Single Pulse Energy Dissipation: 1650 Joules- Peak Impulse Current: 52,000 A- EMIRFI Noise Filtration: 50db (99.7%)- Line Voltage: 120V (5060Hz)- Initial Clamping Level: 200V Peak, 141 rms - UL 1449 Suppression Rating: L-N 400V, L-G 400V, N-G 400V - Maximum Current Rating: 15A (1800W) - Response Time: 1-5 Nanoseconds
