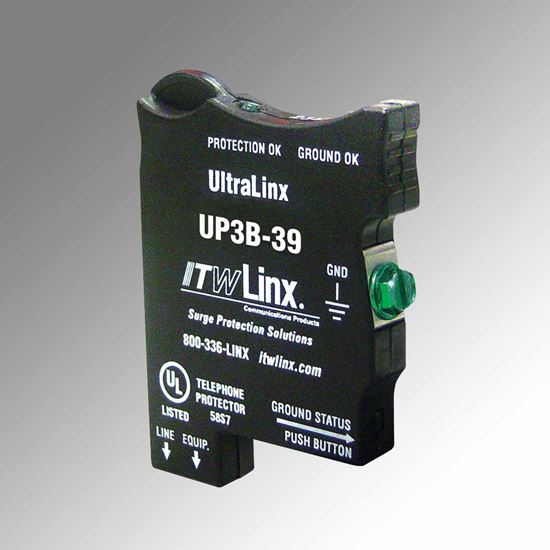

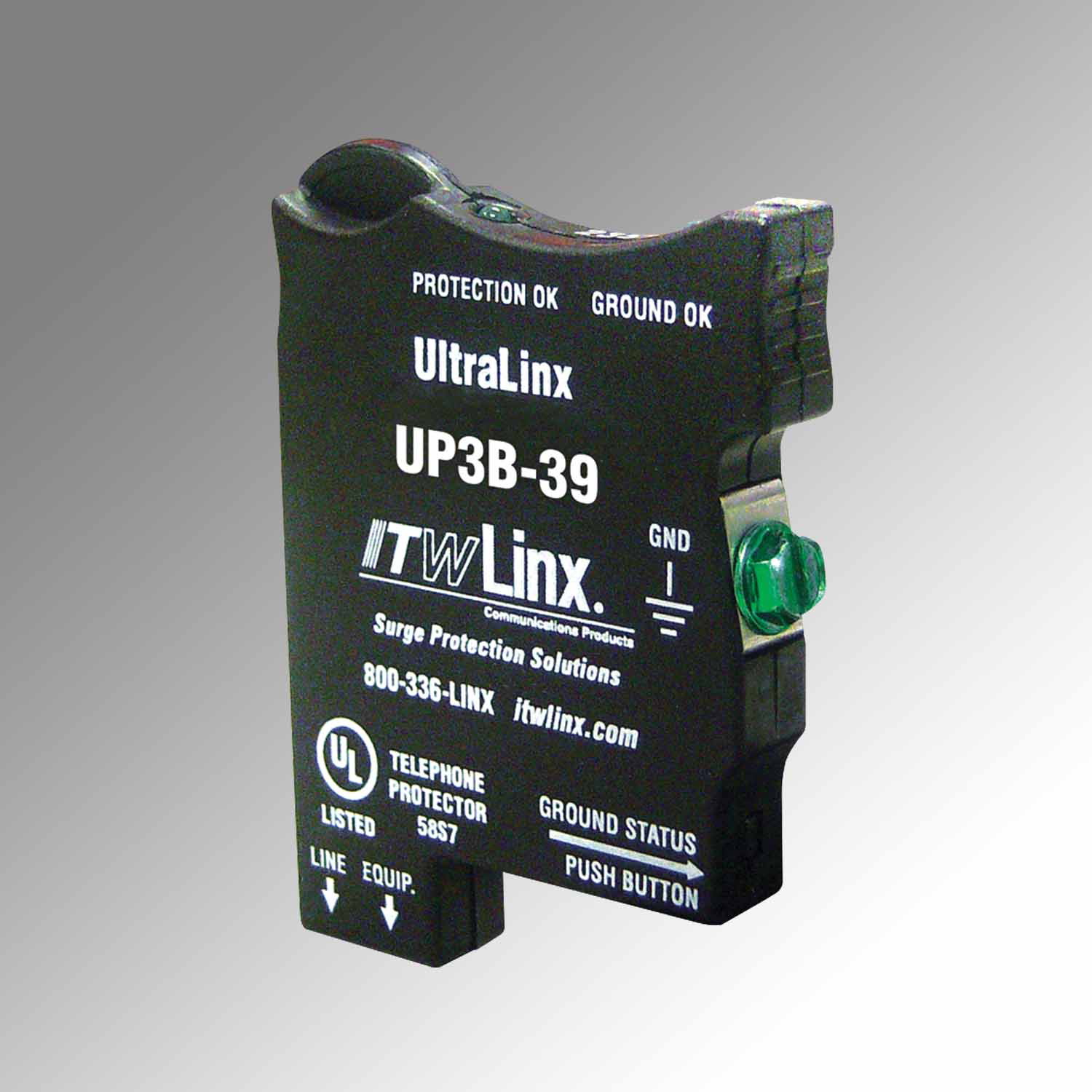

UltraLinx 66 Block 39V Clamp 350mA Fuse

- 66 Block Primary or Secondary 39V Surge Protector- UL Primary and Secondary listed with 350mA fuse for voicefaxmodem line (39V) - Dual Indicator Lights: Protection OK and Ground Connection OK - Solid-State Protection - Single Pair Protection: Protect only the lines requiring protection - Ideal for Retrofit Applications: Just remove the bridging clips from the block and replace them with the Protector, add the ground connection, and the pair is connected - Grounding Requirements: Field-installed solid copper wire - Recommended Grounding Impedance: <0.5 Ohm - Fuse Rating: 350mA (1.6 Ohms) - Signal Perfect Circuitry - Clamping Level: 39V - Response Time: 1-5 Nanoseconds - Capacitance: <50pF - Suppression Modes: Metallic and Longitudinal - Wires Protected: 2-wires, 1 pair - Termination Type: 66 M Blocks
