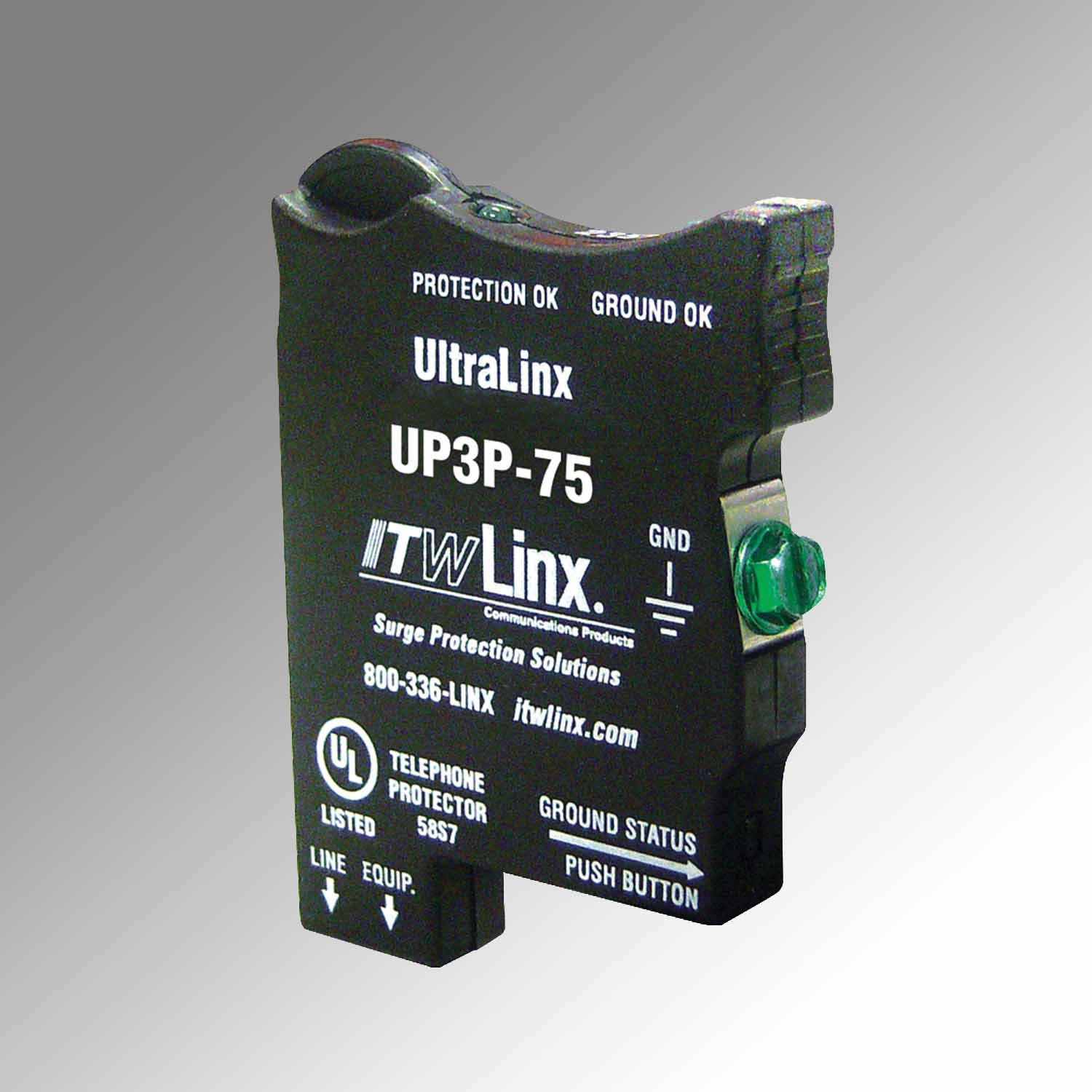

UltraLinx 66 Block 75V Clamp 160mA PTC

66 Block UL Secondary 75V Surge Protector UL Secondary listed with 160mA PTC for voicefaxmodem lines (75V) Dual Indicator Lights: Protection OK and Ground Connection OK Solid-State Protection Single Pair Protection: Protect only the lines requiring protection Ideal for Retrofit Applications: Just remove the bridging clips from the block and replace them with the Protector, add the ground connection, and the pair is connected Grounding Requirements: Field-installed solid copper wire Recommended Grounding Impedance: <0.5 Ohm Fuse Rating: 160mA (8-10 Ohms) Signal Perfect Circuitry Clamping Level: 75V Response Time: 1-5 Nanoseconds Capacitance: <50pF Suppression Modes: Metallic and Longitudinal Wires Protected: 2-wires, 1 pair Termination Type: 66 M Blocks
