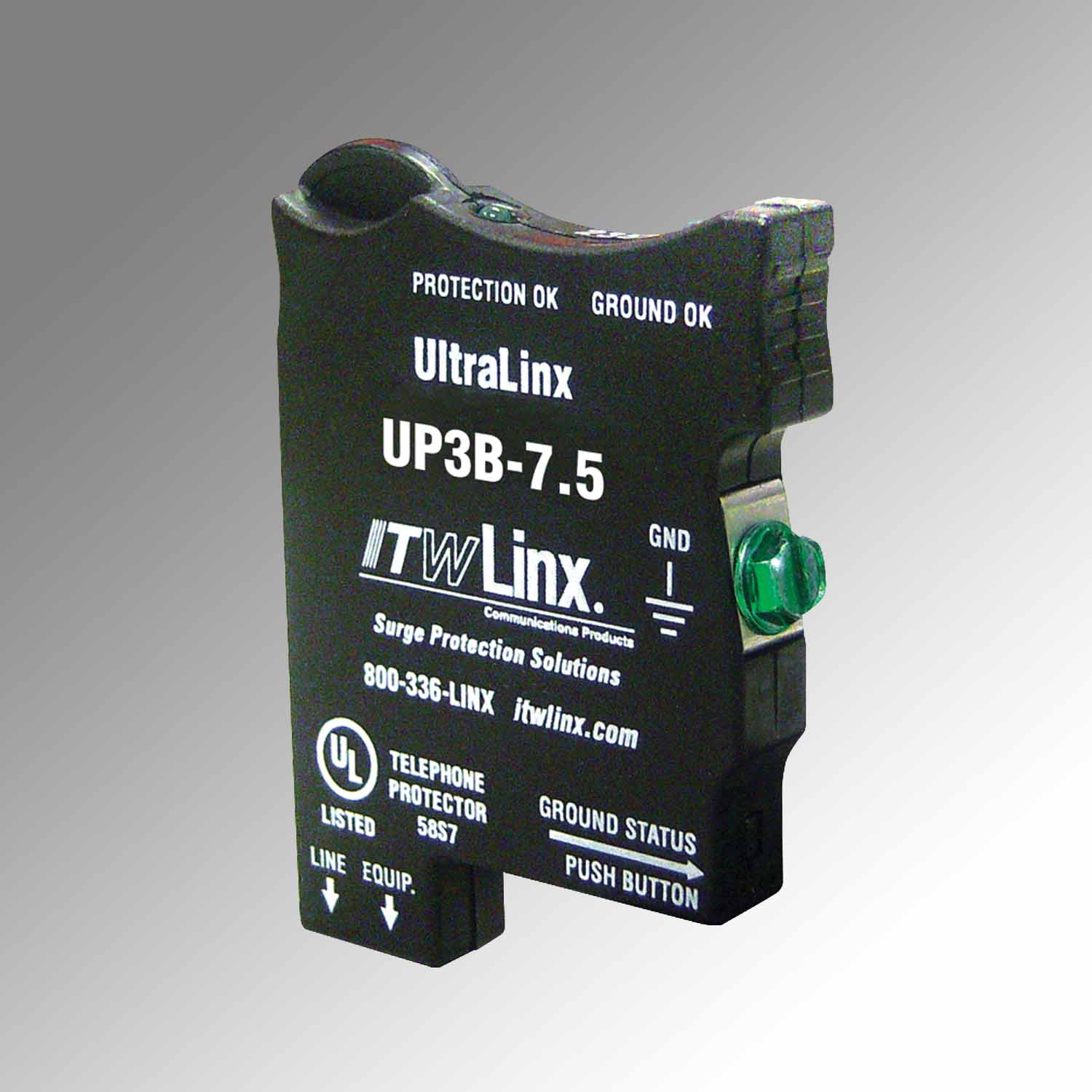

UltraLinx 66 Block 7.5V Clamp 350mA Fuse

66 Block Primary or Secondary 7.5V Surge Protector UL Primary and Secondary listed with 350mA fuse for voicefaxmodem line (7.5V) Dual Indicator Lights: Protection OK and Ground Connection OK Solid-State Protection Single Pair Protection: Protect only the lines requiring protection Ideal for Retrofit Applications: Just remove the bridging clips from the block and replace them with the Protector, add the ground connection, and the pair is connected Grounding Requirements: Field-installed solid copper wire Recommended Grounding Impedance: <0.5 Ohm Fuse Rating: 350mA (1.6 Ohms) Signal Perfect Circuitry Clamping Level: 7.5V Response Time: 1-5 Nanoseconds Capacitance: <50pF Suppression Modes: Metallic and Longitudinal Wires Protected: 2-wires, 1 pair Termination Type: 66 M Blocks
