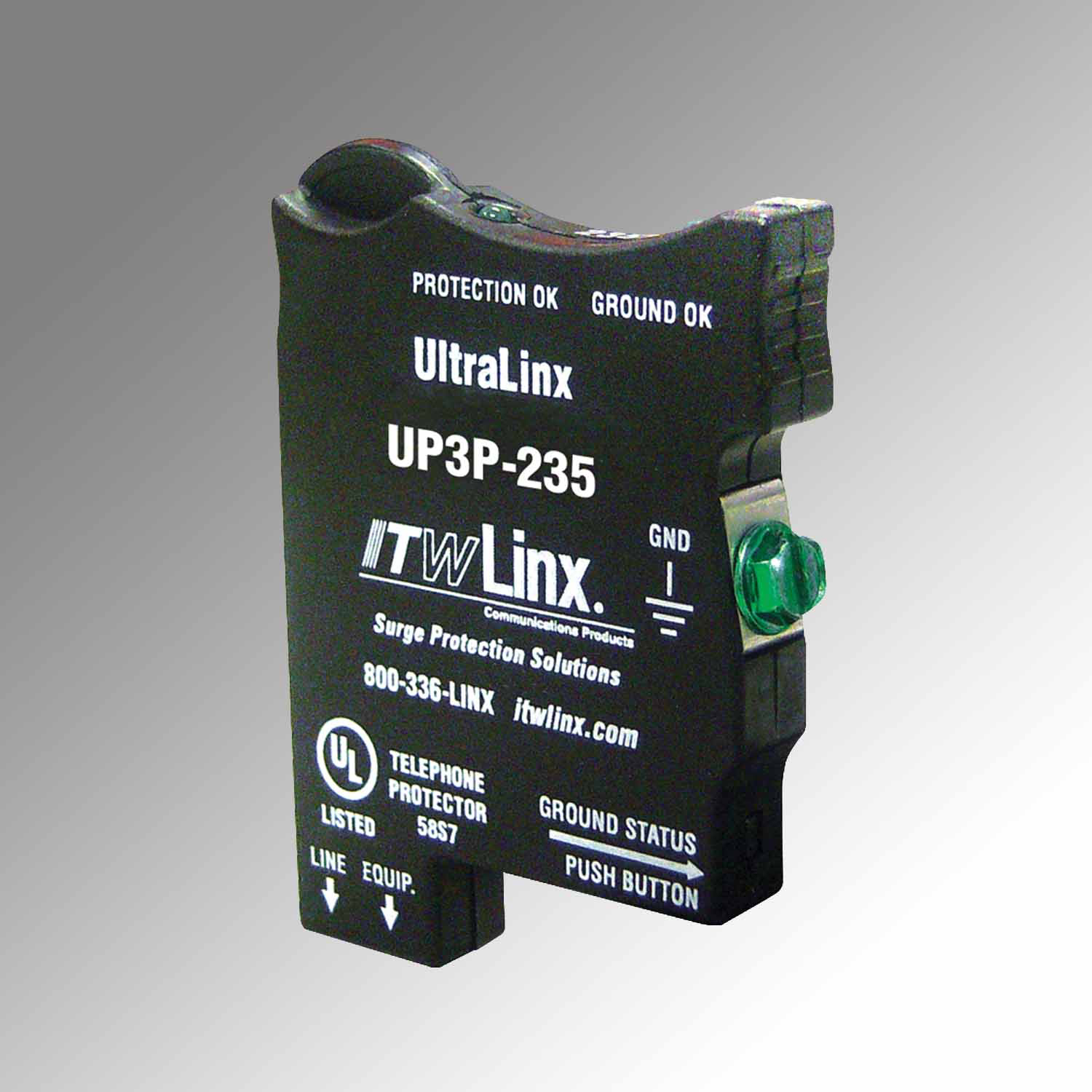

UltraLinx 66 Block235V Clamp160mA PTC

- 66 Block UL Secondary 235V Surge Protector- UL Secondary listed with 160mA PTC for voicefaxmodem lines (235V)- Dual Indicator Lights: Protection OK and Ground Connection OK - Solid-State Protection - Single Pair Protection: Protect only the lines requiring protection - Ideal for Retrofit Applications: Just remove the bridging clips from the block and replace them with the Protector, add the ground connection, and the pair is connected - Grounding Requirements: Field-installed solid copper wire - Recommended Grounding Impedance: <0.5 Ohm - Fuse Rating: 160mA (8-10 Ohms) - Signal Perfect Circuitry - Clamping Level: 235V - Response Time: 1-5 Nanoseconds - Capacitance: <50pF - Suppression Modes: Metallic and Longitudinal - Wires Protected: 2-wires, 1 pair - Termination Type: 66 M Blocks
