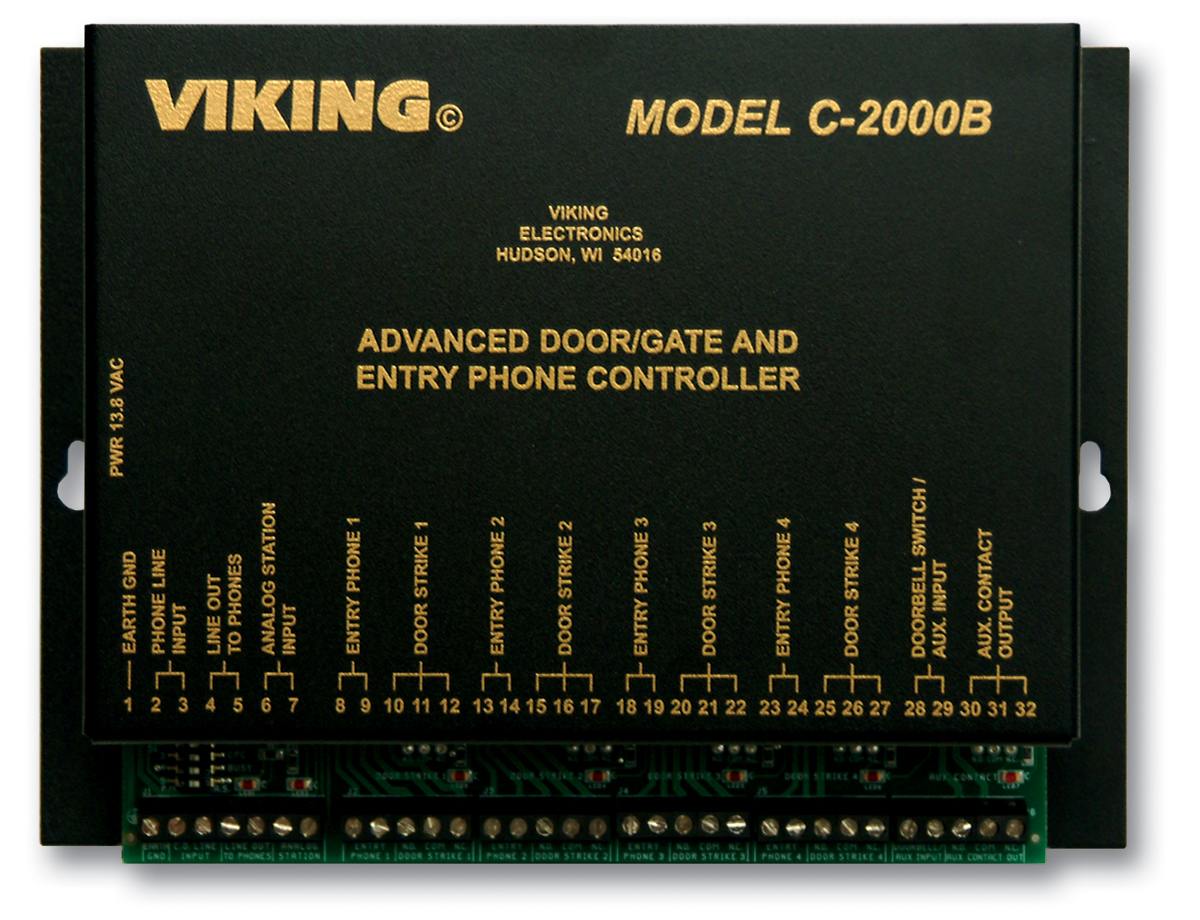

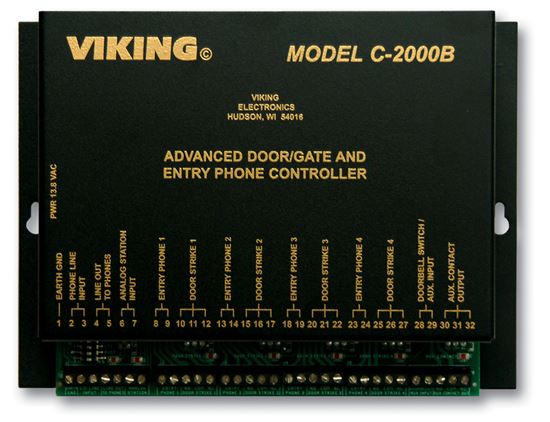

Viking C-2000B Door Entry Controller

- Viking advanced doorgate entry phone controller - Allows 1-4 entry phones to share a single telephone line with a residential or business telephone system - Use with any analog touch tone phone- Provide entry phone activated chimes and whole house paging when used with an SLP-1 or SLP-4 - Up to 6 different keyless entry codes “one time use” keyless entry codes per entrance - Up to 6 master keyless entry codes for use at any entrance - Analog station mode allows the C-2000B to connect to an unused PABX station port - Optional “Privacy Number” allows only selected visitors to call from an entry phone - Provides “Caller ID” and “Call Waiting Caller ID” - Produces “Call Waiting” tones - Lighted doorbell switch input to activate entry phone call - One set of normally open and normally closed contacts available for each entry phone - Programmable contact activation time - Auxiliary input to activate timed auxiliary contacts - Power: 120VAC 13.8VAC 1.25A, UL listed adapter provided - Environmental: 0°C to 32°C (32°F to 90°F) with 5% to 95% non-condensing humidity - Relay Contacts: 5A @ 30VDC250VAC - Ring Output: 8 REN, capable of ringing (16) 0.5 REN phones - Talk Battery: 40V DC - REN: 0.1A - Connections: (30) cage clamp screw terminals VKC2000B
